NZ-SSL-T75

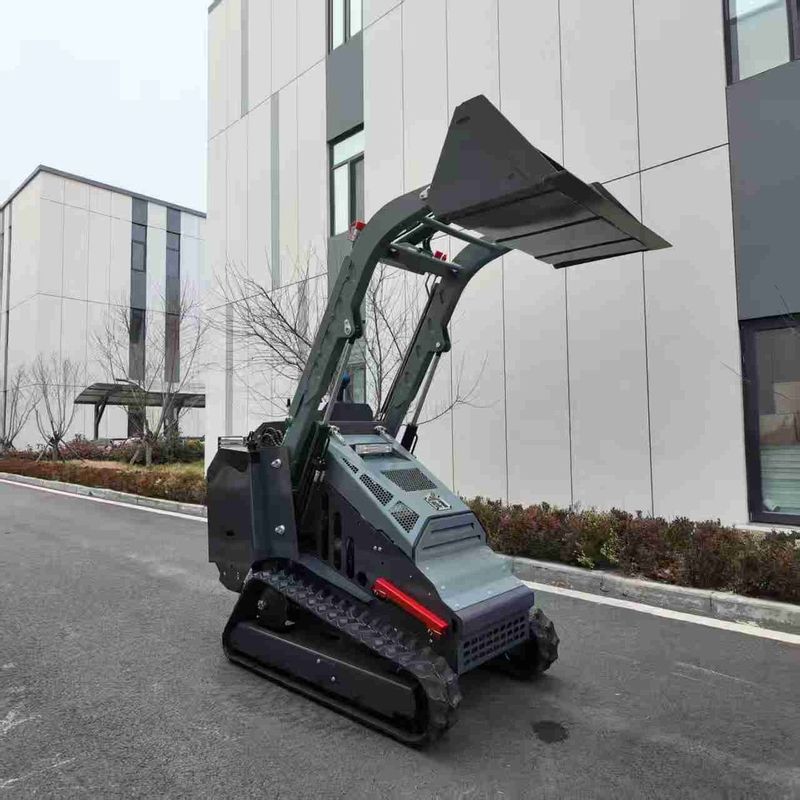

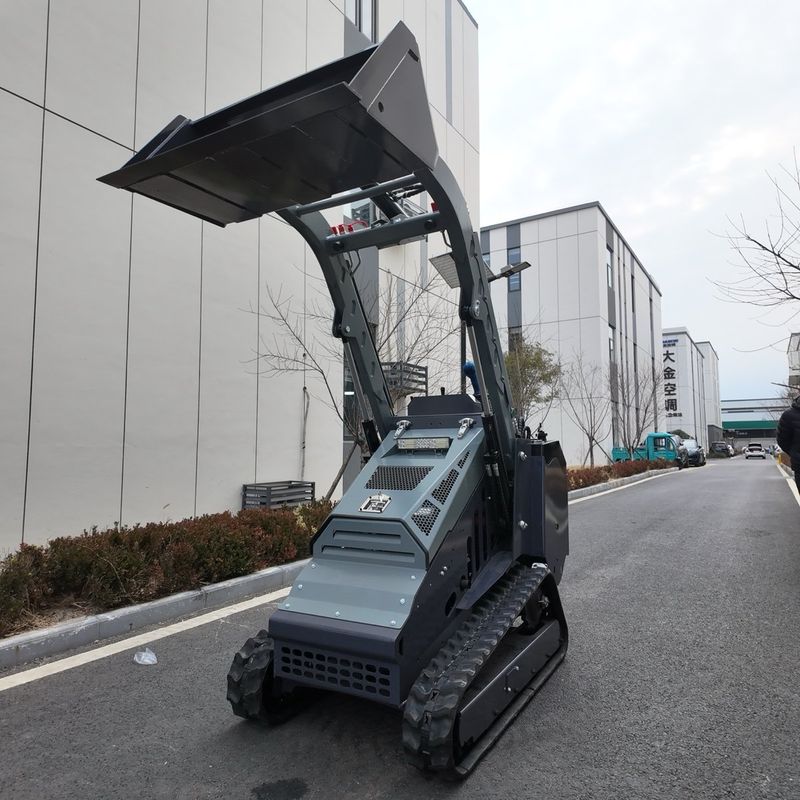

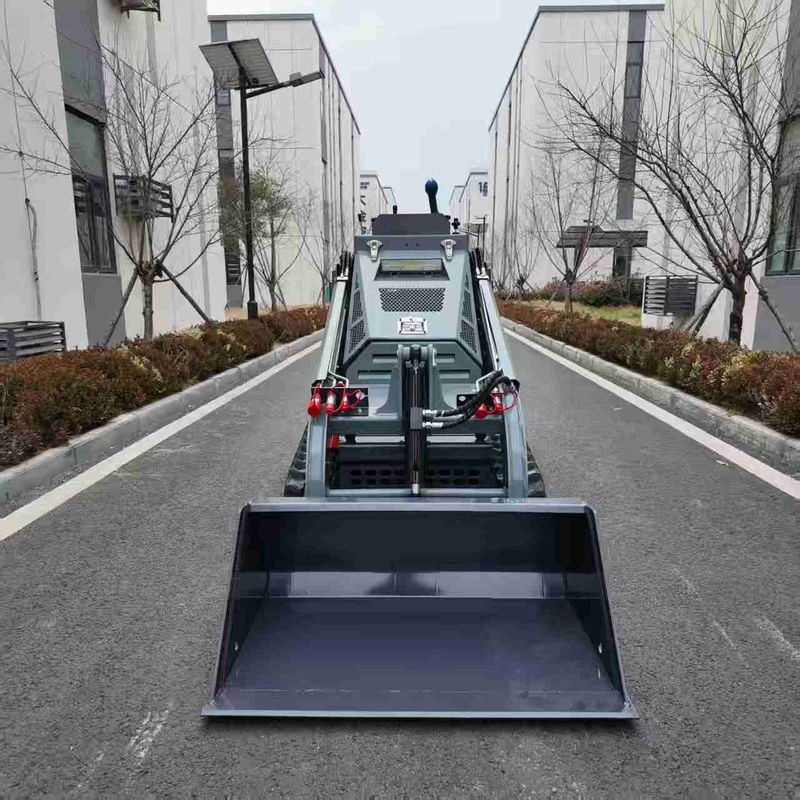

Skid Steer Loader T75 400-550kg Yanmar
Skid steer loader, capacitate 400-550kg, cupa 0.15m3, motor Yanmar/Kubota/Laidong
25 CP
Putere Motor
Tracked
Tractiune
Yanmar/Kubota
Motor
900 kg
Greutate
Livrare
15
zile productie
45
zile transport
7
piese schimb (avion)
Direct din fabrica - preturi competitive
Piese de schimb in 5-7 zile prin avion
Posibilitate vizita la fabrica
Garantie completa
Raspundem in maximum 24 de ore
Specificatii Tehnice
| Capacitate nominala | 400-550 kg |
| Capacitate cupa | 0.15 m3 |
| Motoare disponibile | Yanmar / Kubota / Laidong |
| Termen livrare | 2-3 saptamani productie + 45 zile transport maritim |
| Operating weight | 1729kg |
| Bucket capacity | 0.15m³ |
| Climbing ability | 25° |
| Maximum breakout force | 4.5KN |
| Rated load | 420kg |
| Maximum load | 500kg |
| Travel speed | 0-4km/h |
| Vehicle width | 911mm |
| Rated pressure | 16Mpa |
| Bucket width | 1020mm |
| Max loading height | 2000mm |
| Max dumping height | 1704mm |
| Max operating height | 2873mm |
| Height to bucket pin | 2195mm |
| Max height bucket dump angle | 32° |
| Min height | 1573mm |
| Departure angle | 39° |
| Ground clearance | 225mm |
| Dumping distance | 371mm |
| Track contact length | 1807245 |
| Overall dimensions | 265110201573mm |
| Length including bucket | 2651mm |
| Length excluding bucket | 2084mm |
| Brand | yanmar/ Kubota |
| Model | D1105 |
| Rated power | 17.1(18.2)kw |
| Cylinder | 3 |
| Intake method | Natural inhalation |
| Emission standard | EPA/ERUO5 |
| Fuel tank capacity | 33L |
| Options | 1. Steel tracks +EUR 550. |
| PACKING | 14 units in 40HQ |
| SHIPPING TERMS | FOB QINGDAO PORT |
| PRODUCT STATUS | 100% NEW, MADE IN CHINA |
| WARRANTY | 12 MONTH OR 1500 WORKING HOURS |
| PAYMENT TERMS | 30% DOWN PAYMENT, 70% BALANCE PAYMENT BEFORE DELIVERY BY T/T |
