NZ-PLT-01

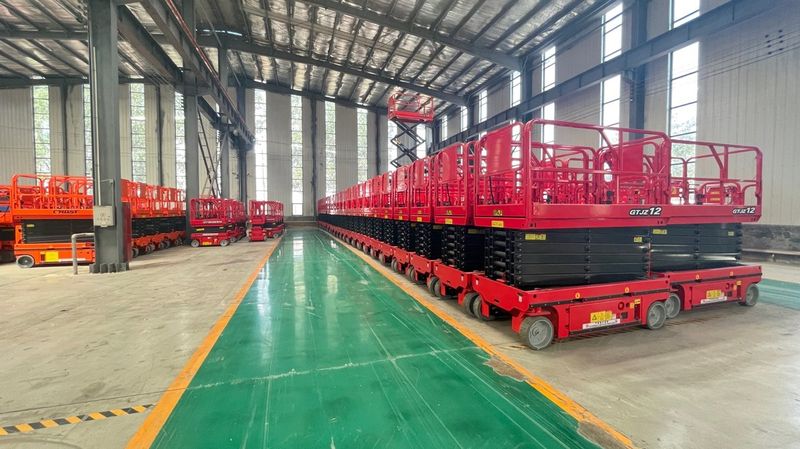

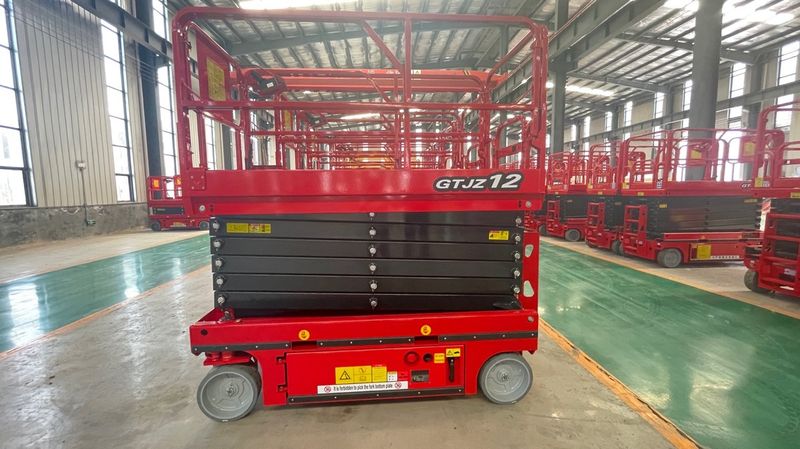

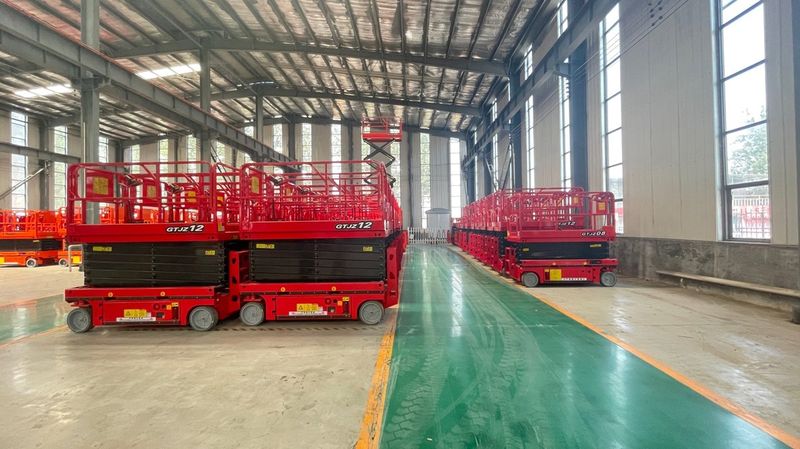

Platforma Ridicare Foarfeca RC 4-16m
Platforma ridicare foarfeca cu telecomanda, inaltime 4-16m, capacitate 500kg, autopropulsata, zero emisii
Electric self-propelled
Tractiune
2,000 kg
Greutate
Livrare
15
zile productie
45
zile transport
7
piese schimb (avion)
Direct din fabrica - preturi competitive
Piese de schimb in 5-7 zile prin avion
Posibilitate vizita la fabrica
Garantie completa
Raspundem in maximum 24 de ore
Specificatii Tehnice
| Inaltime de lucru | 4-16 m (personalizabil) |
| Capacitate | 500 kg |
| Operare | Telecomanda wireless |
| Propulsie | Electrica, autopropulsata |
| Directie | Precisa, spatii inguste |
| Emisii | Zero (interior/exterior) |
| Siguranta | Protectie suprasarcina, stop urgenta, platforme antiderapante |
| Constructie | Otel rezistent, design foarfeca |
| Termen livrare | 2-3 saptamani productie + 45 zile transport maritim |
| Parameter Details Maximum Working Height | 15.8m |
| Maximum Platform Height | 13.8m |
| Work Platform Dimensions (L × W × H) | 2.67 × 1.13 × 1.1m |
| Overall Machine Dimensions (L × W × H, Guardrail Unfolded) | 2.84 × 1.4 × 2.595m |
| Overall Machine Dimensions (L × W × H, Guardrail Folded) | 2.84 × 1.4 × 2.06m |
| Platform Extension Dimension | 0.9m |
| Minimum Ground Clearance | 0.1/0.02m |
| Wheelbase | 2.26m |
| Parameter Details Safe Working Load | 227kg |
| Extended Platform Safe Working Load | 113kg |
| Turning Radius (Inner Wheel / Outer Wheel) | 0/2.7m |
| Lifting/Drive Motor | 24V/4.5kw 4.5cc |
| Lifting Speed | 3-5m/min |
| Machine travel speed (lifted) | 0.8km/h |
| Maximum gradeability | 25% |
| Maximum permissible working angle | 1.5°/3° |
| Tires | Φ381×127mm |
| Battery | 4×12V/100ah |
| Charger | 24V/30A |
| PACKING | 4 units in 40HQ |
| SHIPPING TERMS | FOB QINGDAO PORT |
| PRODUCT STATUS | 100% NEW, MADE IN CHINA |
| WARRANTY | 12 MONTH OR 1500 WORKING HOURS |
| PAYMENT TERMS | 30% DOWN PAYMENT, 70% BALANCE PAYMENT BEFORE DELIVERY BY T/T |
